CUADC Cargo Aircraft Conceptual Design & CAD Modelling Jun 2026 – Aug 2026 Explore moreCollapse description

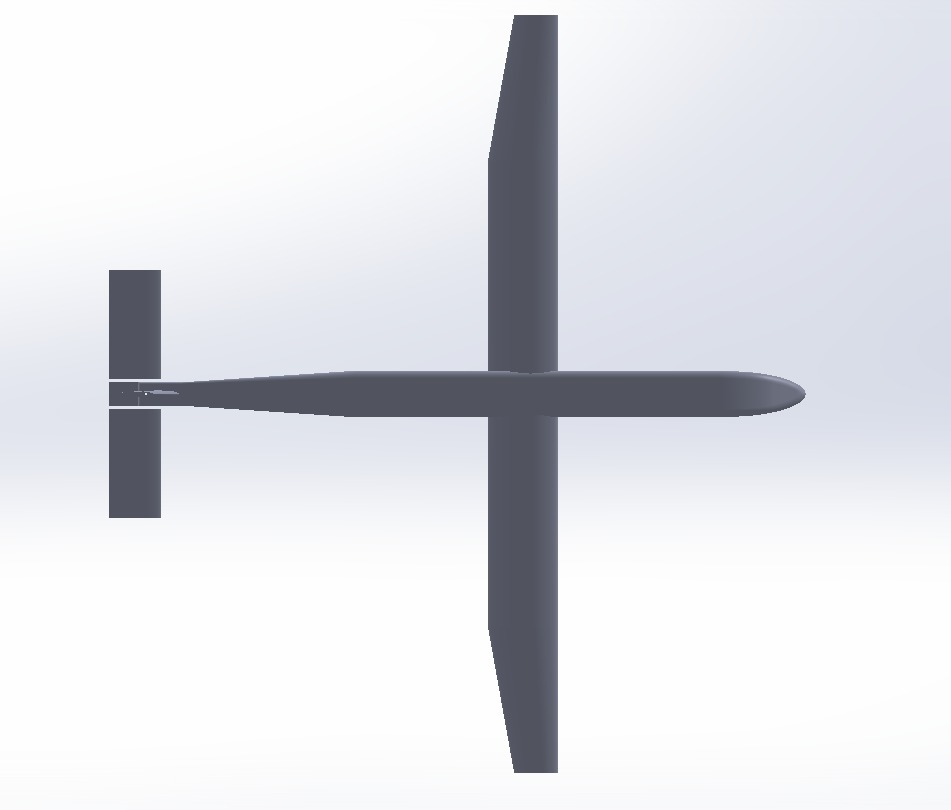

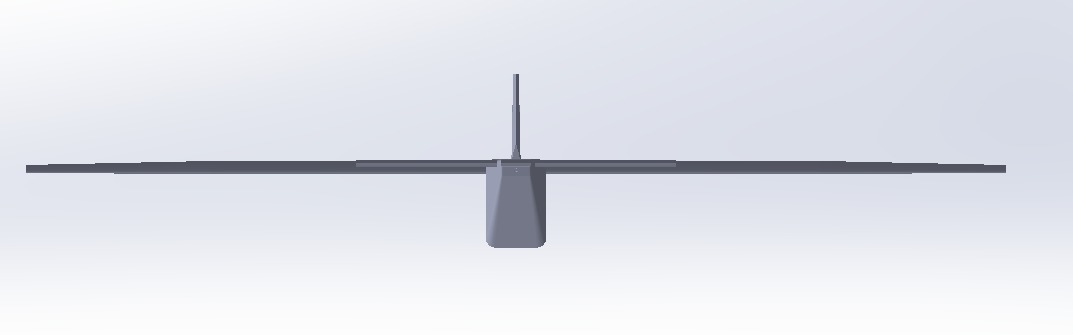

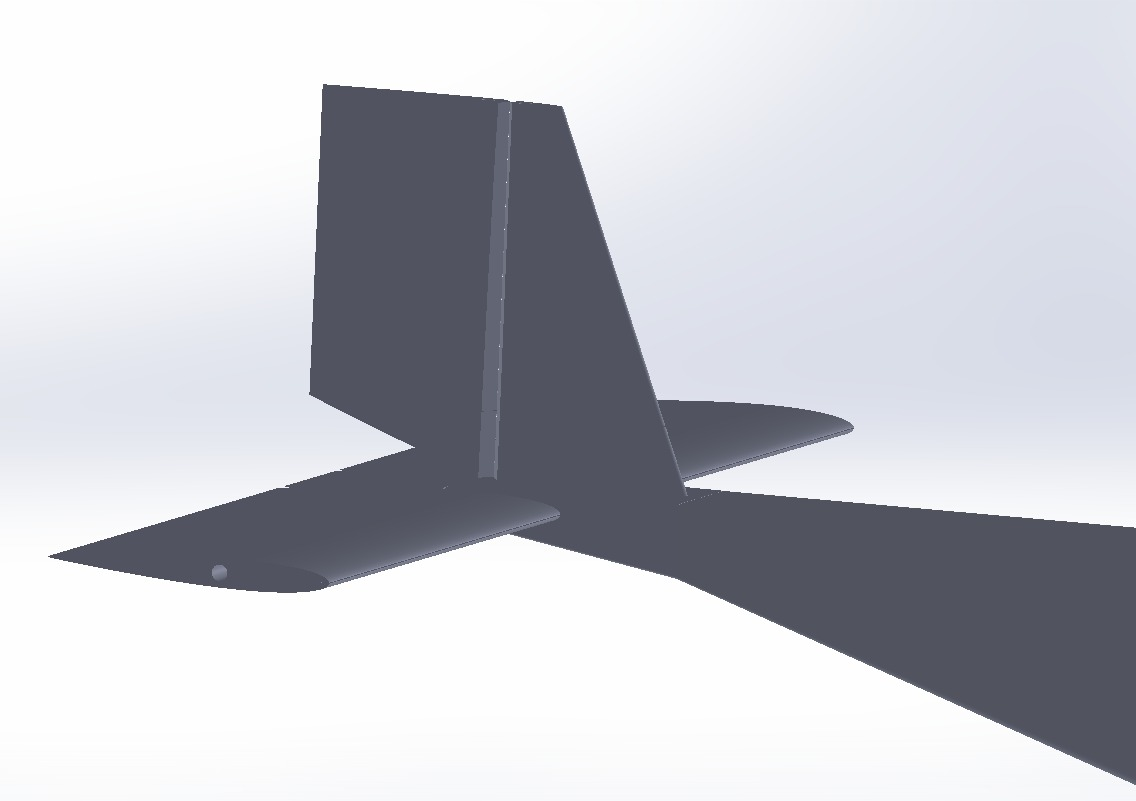

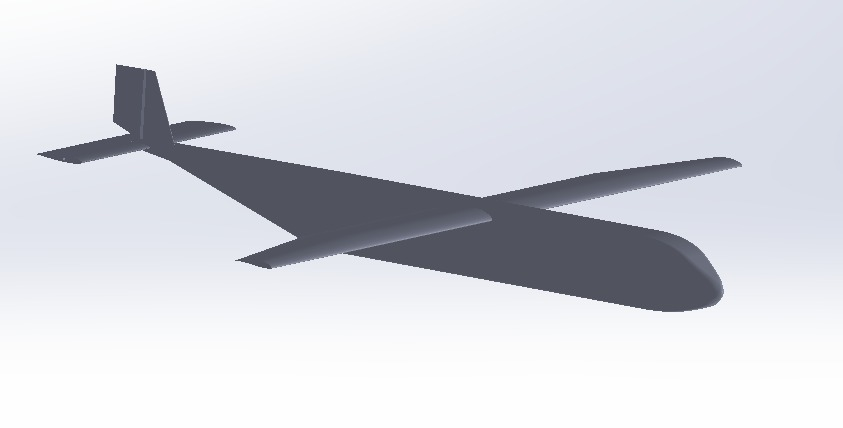

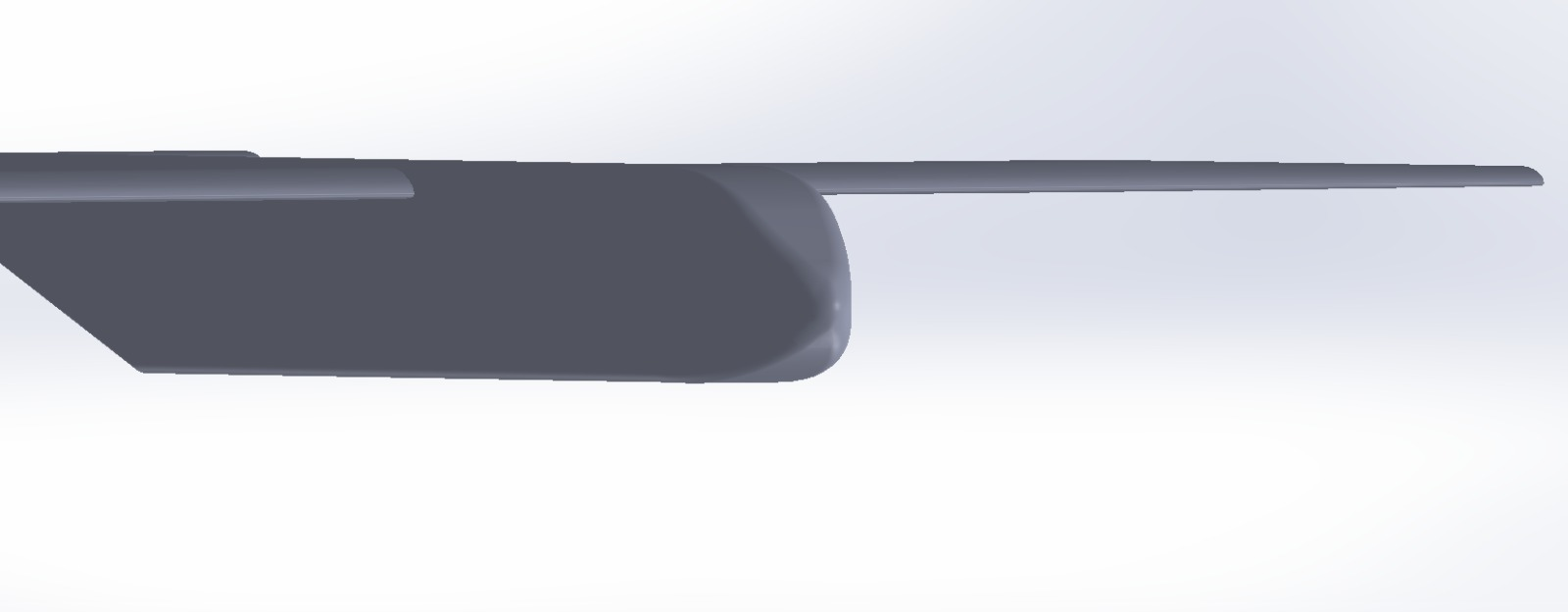

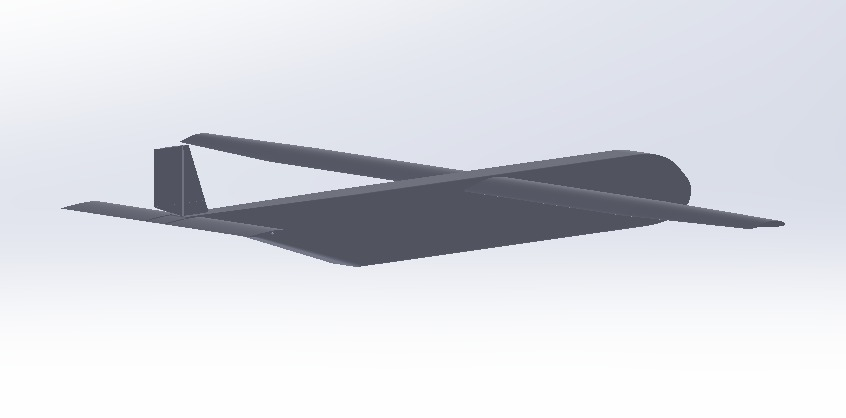

I helped prepare Peking University’s team for its planned return to the China Undergraduate Aircraft Design Innovation Competition (CUADC) after six years away, focusing on the Timed Cargo Transport category. I evaluated low-speed airfoils using XFOIL and ANSYS Fluent, compared wing planforms, and selected a wing configuration and incidence angle based on aerodynamic efficiency and lift requirements at the estimated fully loaded weight. Using SolidWorks, I also modeled the fuselage and designed its ribs to maximize cargo space. Comparing the two simulation tools revealed differences in predicted lift, pitching moment, and drag coefficients, reinforcing the importance of experimental validation. Although our team did not enter the competition, the project strengthened my skills in aerodynamic analysis, CAD modeling, and teamwork, while teaching me to connect numerical results with practical design requirements.

Tools used

  • XFOIL
  • ANSYS Fluent
  • SolidWorks
Download Project Doc Please note: The following Project Report is written in Chinese
Numerical Calculation of Airfoil Mar 2026 – Apr 2026 Explore moreCollapse description

For this project, I developed a Python-based numerical program utilizing the panel method to calculate the aerodynamic coefficients of an airfoil. I designed and implemented computational procedures to discretize the airfoil geometry into distinct panels, allowing the program to estimate flow characteristics and evaluate critical parameters like the lift coefficient and pressure distribution. Building this tool from scratch bridged theoretical concepts with practical application, significantly strengthening my proficiency in aerodynamic theory, numerical methods, and Python engineering computation.

Tools used

  • Python
Download Project Doc Please note: The following Project Report is written in Chinese
ESP32 Environmental Monitoring Drone Mar 2026 – Jun 2026 Explore moreCollapse description

As a core member of a four-person team developing this project, I led both the embedded systems programming and structural hardware design. I engineered a complete environmental monitoring module using an ESP32 microcontroller programmed with MicroPython, which collected data from multiple sensors (temperature, humidity, flame, human presence, light, and air quality) and transmitted it to a custom, real-time web dashboard via Wi-Fi. Simultaneously, I designed the leader drone's fuselage in SolidWorks and validated its structural integrity through ANSYS finite element analysis. After physical assembly and initial flight testing revealed stability issues due to structural asymmetry, I successfully redesigned the fuselage into a fully symmetrical model and optimized the overall system payload distribution by relocating the ESP32 module to the main drone.

Tools used

  • MicroPython
  • Hardware Assembly
  • Electronic Module Integration
  • Bambu Studio 3D Printing
  • Static Structural Analysis
Download Project Doc Please note: The following Project Report is written in Chinese
Reusable Rocket Ground Clamping Structure Design And Testing Nov 2025 – Dec 2025 Explore moreCollapse description

In a four-person team, I helped design and prototype a scaled ground-based clamping structure inspired by the "chopstick" mechanisms used in reusable rocket recovery systems. Using a 500 ml water bottle to simulate the dynamic rocket load, we successfully built and evaluated a functional physical prototype. I took ownership of the mechanical design phase, developing the complete 3D CAD model in SolidWorks and conducting extensive stress-strain analyses using Ansys Workbench. Simulating these forces allowed us to mathematically validate the structure's load-bearing capabilities and optimize the geometry before committing to 3D printing and physical testing.

Tools used

  • SolidWorks
  • Static Structural Analysis
Download Project Doc Please note: The following Project Report is written in Chinese
3D Modeling Of Smart Bike Using Freecad Mar 2025 – May 2025 Explore moreCollapse description

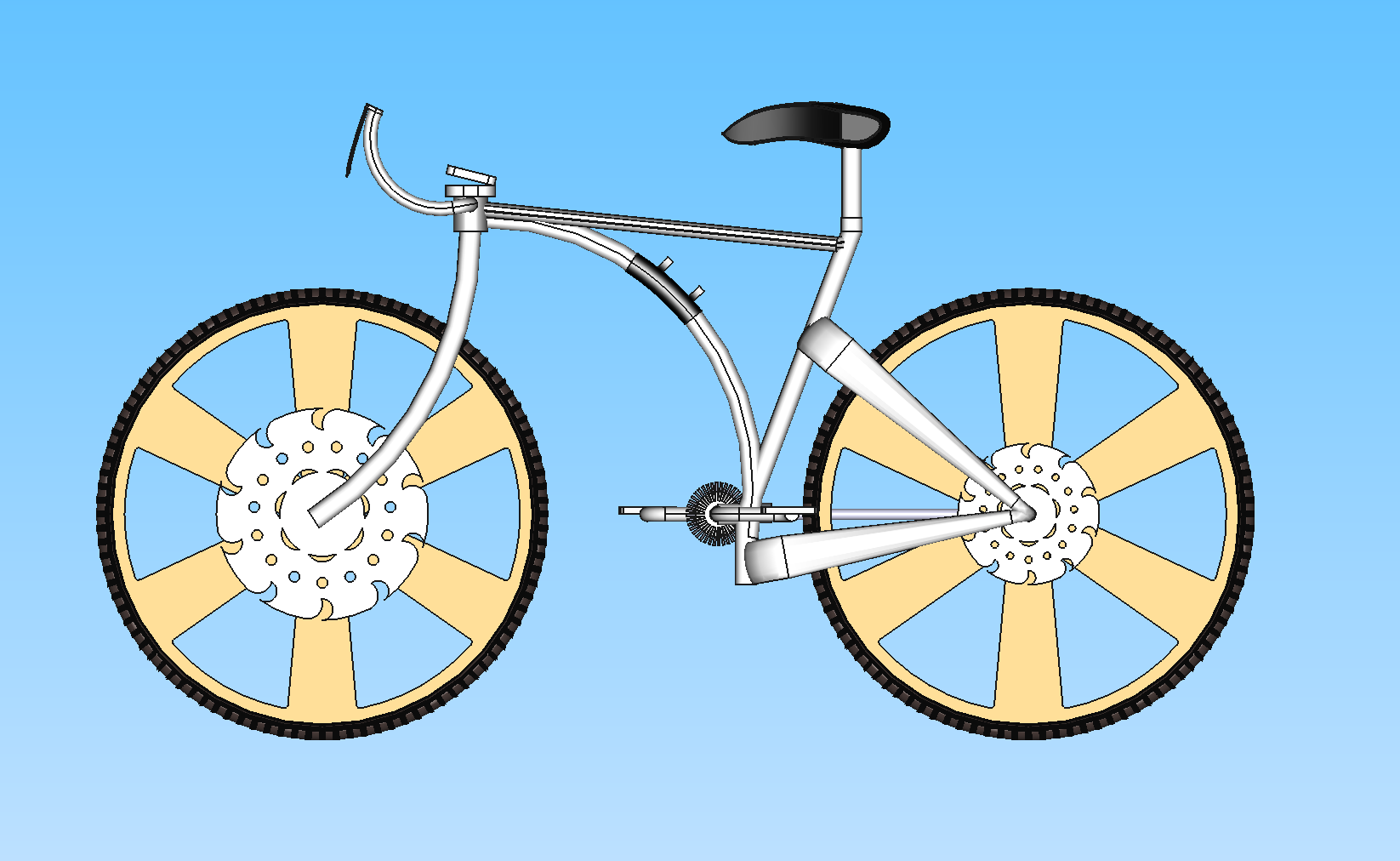

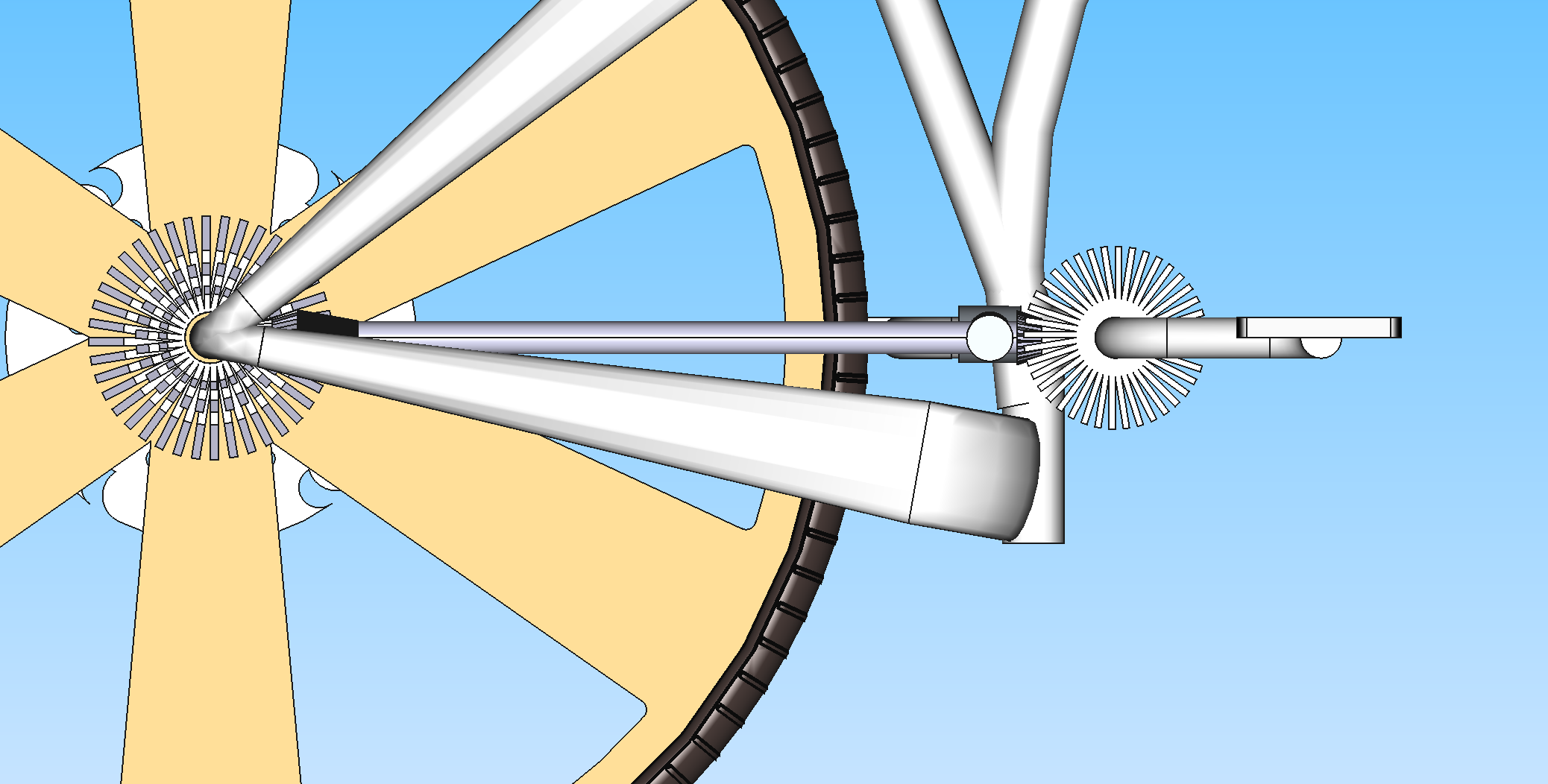

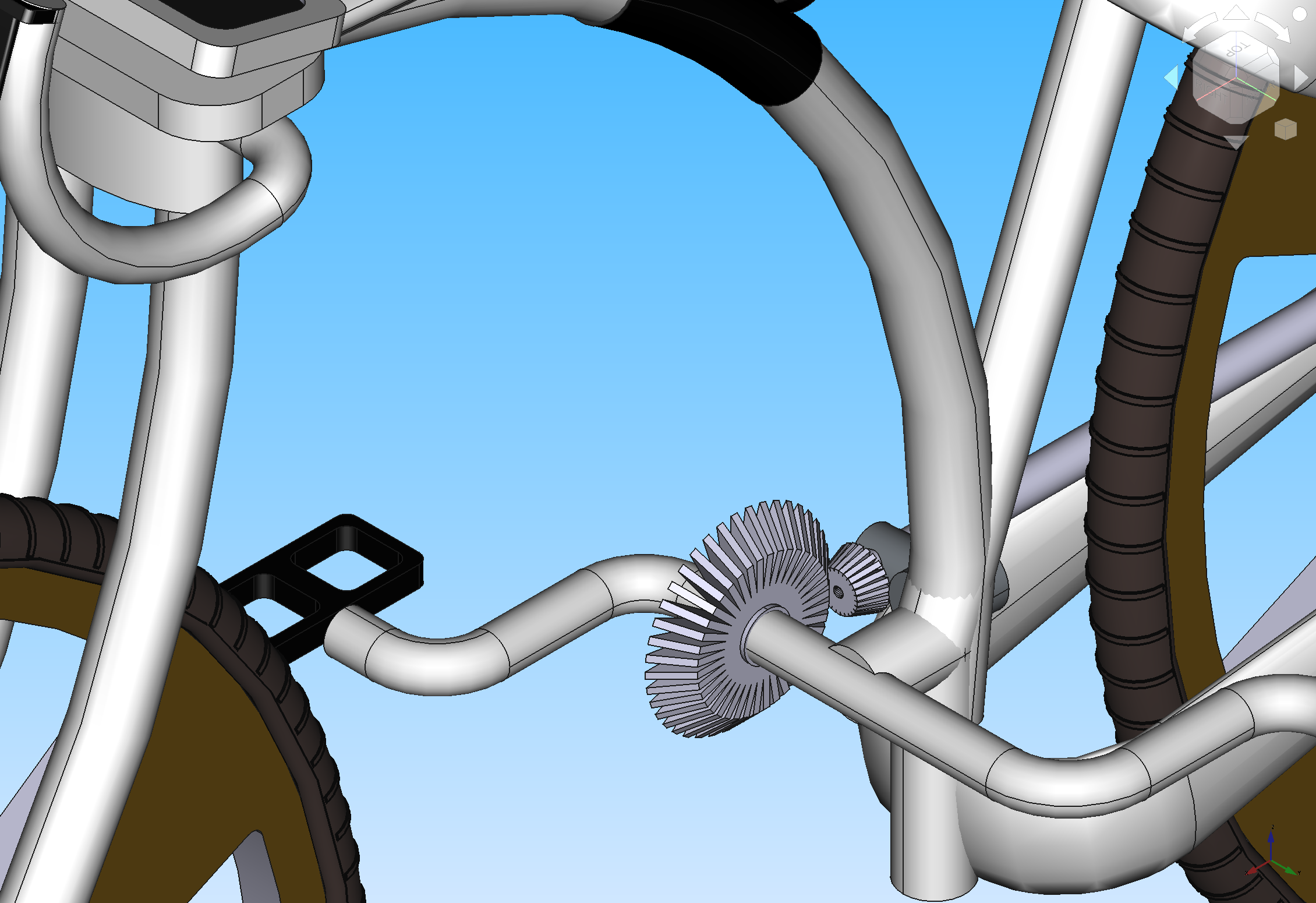

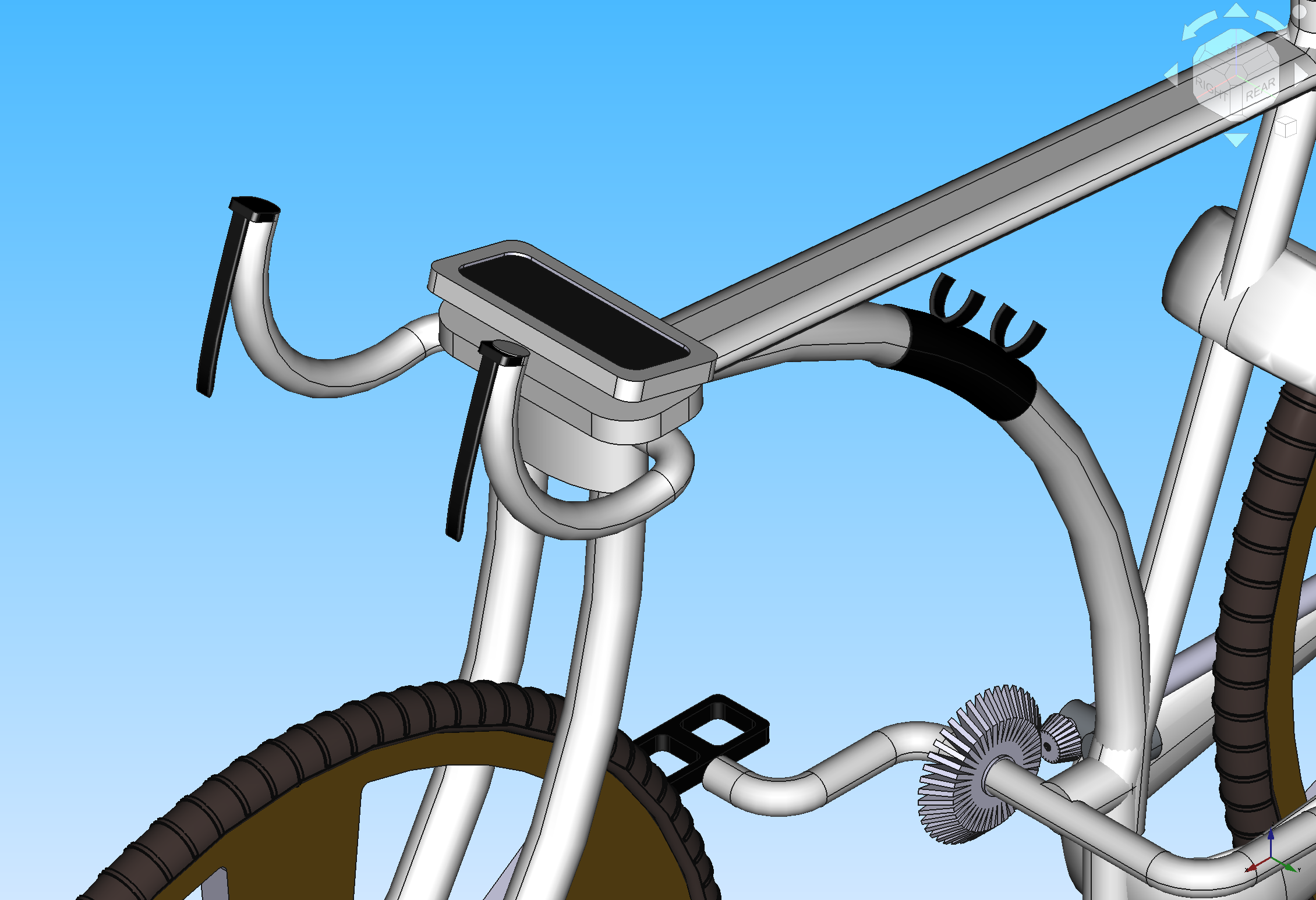

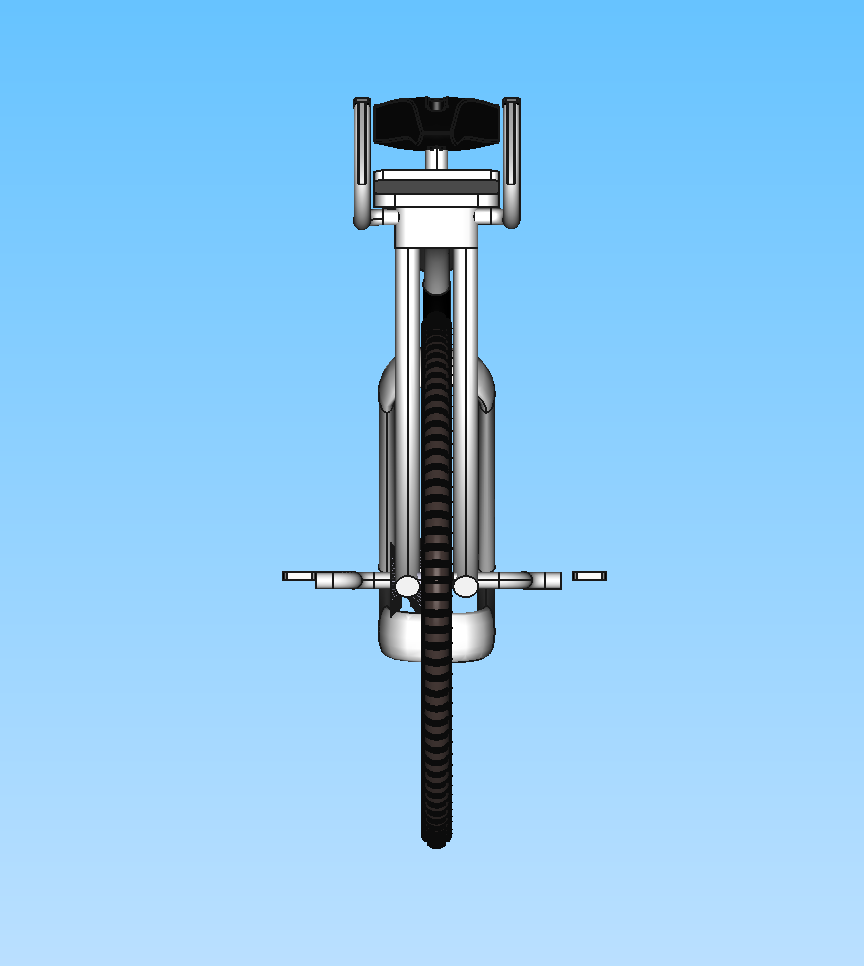

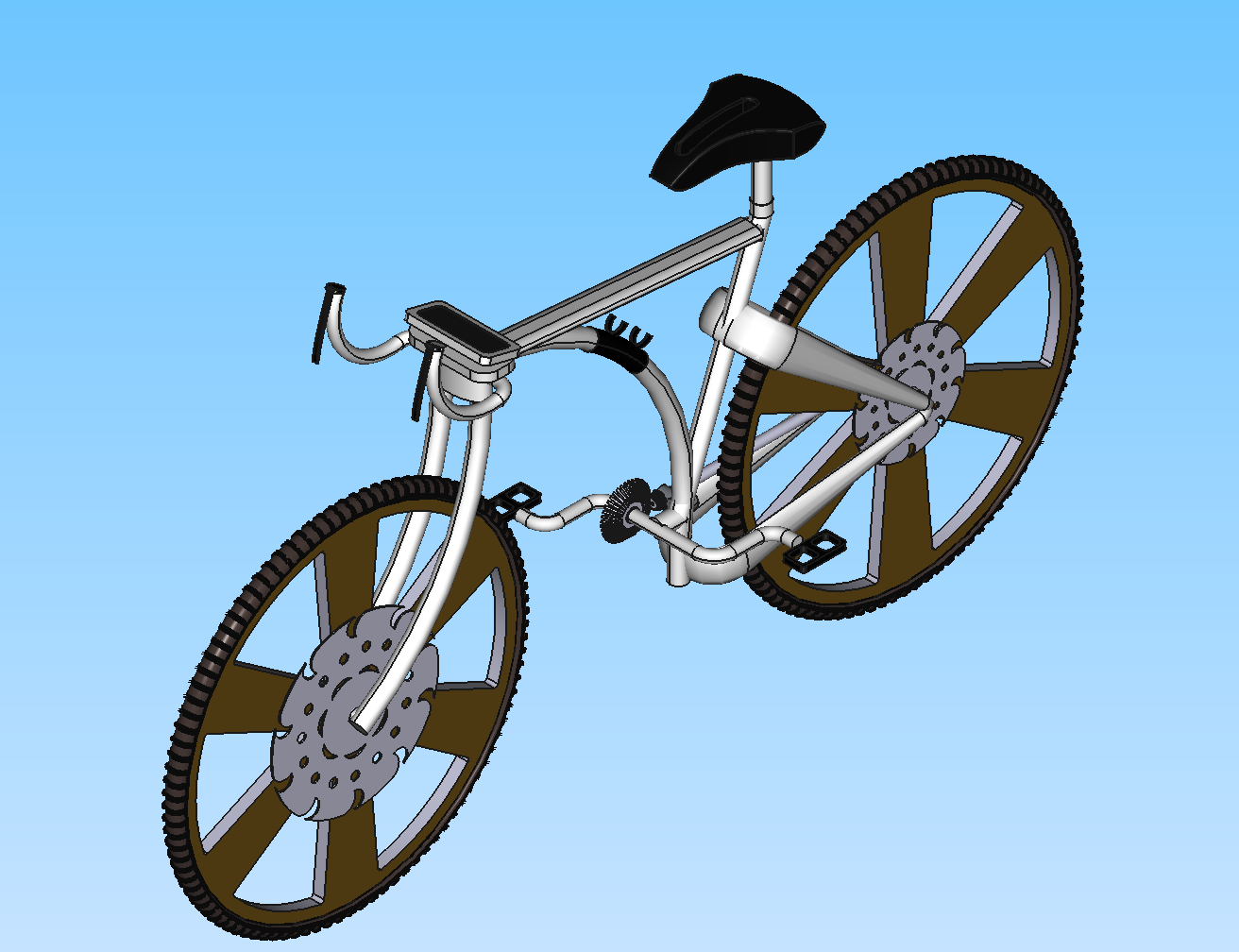

For this project, I conceptualized and engineered a fully featured smart bicycle model using FreeCAD. I designed the complete mechanical assembly from scratch, including the frame, wheels, brake discs, pedals, and a complex shaft-drive transmission system. Beyond the mechanical design, I proposed and integrated next-generation smart features, such as a "BikePlay" entertainment system, kinetic energy recovery braking, Type-C charging, and real-time riding data visualization. Bringing this concept to life required extensive use of advanced FreeCAD modeling tools—including Additive Loft, Polar Pattern, and Slice Apart—which ultimately strengthened my proficiency in mechanical design, CAD modeling, and product visualization.

Tools used

  • FreeCAD
